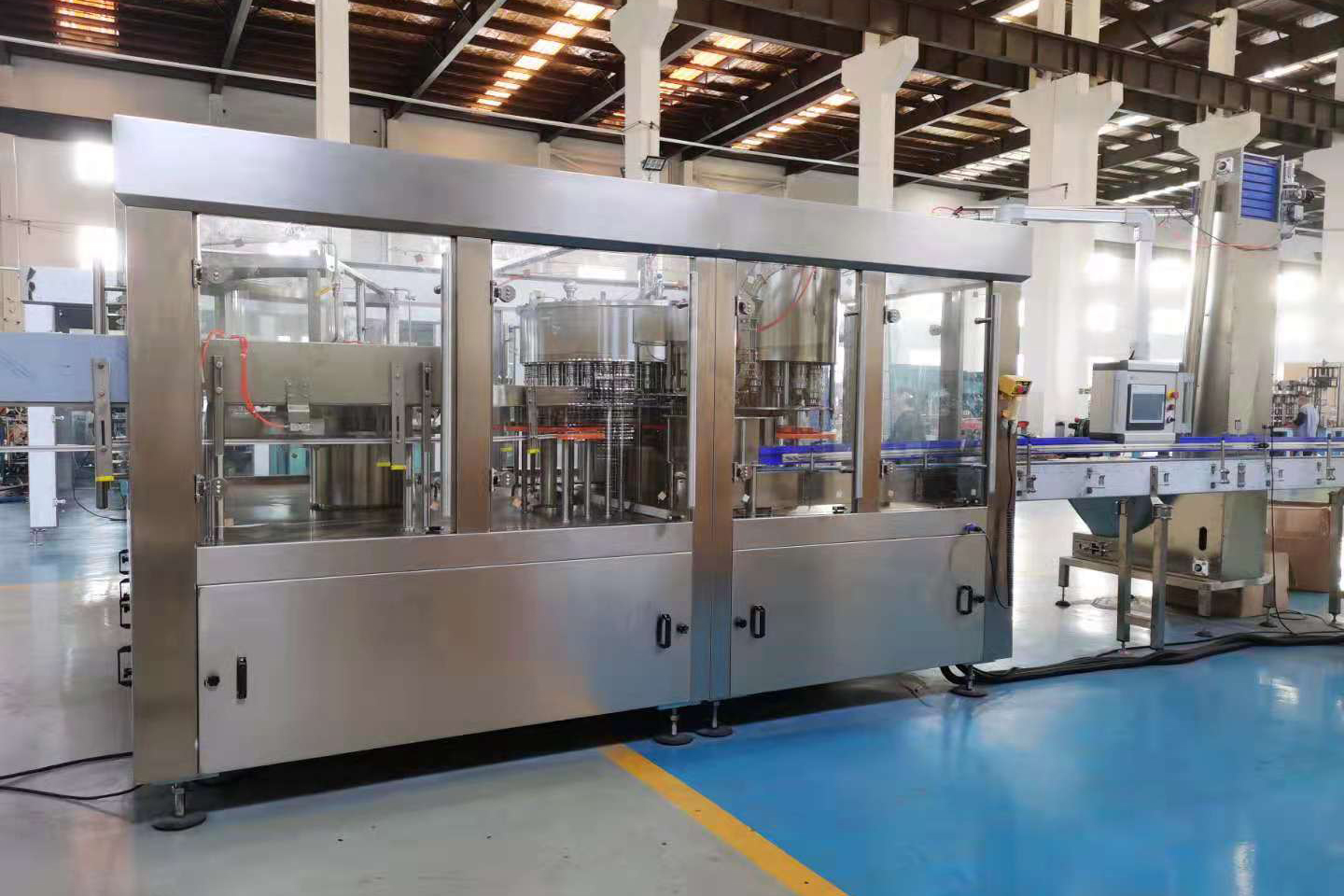

High Accuracy CSD Bottled Production Line/ Carbonated Beverage Bottling Plant/carbonated Water Machine

1. The sparkling beverage filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. This 3-in-1 sparkling beverage filling machine is mainly used for PET bottled gas contained drinks such as soda drinks.

2. This carbonated-drinks filling machine adopts advanced PLC control technology. The main electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products. Each machine element that contacts with the liquid is made of high-quality stainless steel.

Quantity:
Availability:





Inquire Add to Basket

Model:
DCGN series
Brand:
HY-FILLING

Product Description

Main Features

This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.
This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.
The main machine adopts advanced PLC control technology.
The key electric elements adopt international famous products.
We will give you the highest quality and the best service.

Model	DCGN 18-18-6	DCGN 24-24-8	DCGN 32-32-10	DCGN 40-40-12	DCGN 50-50-15	DCGN 60-60-15
Production Capacity (500ml)	5000BPH	8000~ 10000BPH	10000~ 12000BPH	12000~ 15000BPH	15000~ 18000BPH	18000~ 22000BPH
Suitable bottle height	H=170-320 Φ=50-100
Spraying pressure	0.25-0.3
Total Power	2.3	3.0	5.5	7.5	9.0	15
Overall dimension(L×W×H)	2500× 1760× 2650mm	3100× 2100× 2650mm	3800× 2800× 2650mm	4000× 3300× 3400mm	4850× 3650× 3300mm	6500× 5400× 3500mm
Weight <kg>	3500	4650	6800	8500	10000	12500

Washing Parts.

The bottle is blown into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180° into an upright position, through second bottle pusher into the filling position.

Filling Parts.

The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the meantime, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle.

Sealing Parts.

Three capping heads are applied in model CGN18-18-6. The capping part consists of screw heads, capping transmission part, a sorting part and an undercover tube part. The bottle which has finished filling will enter the capping position via the driving wheel.

World-Famous Brands:
Frequency inverter: MITSUBISHI (Japan).
PLC: MITSUBISHI (Japan), SIMENS (Germany)
Contactor: SIEMENS (Germany).
Breaker: SIEMENS (Germany).
Air switch: SCHNEIDER (France).
