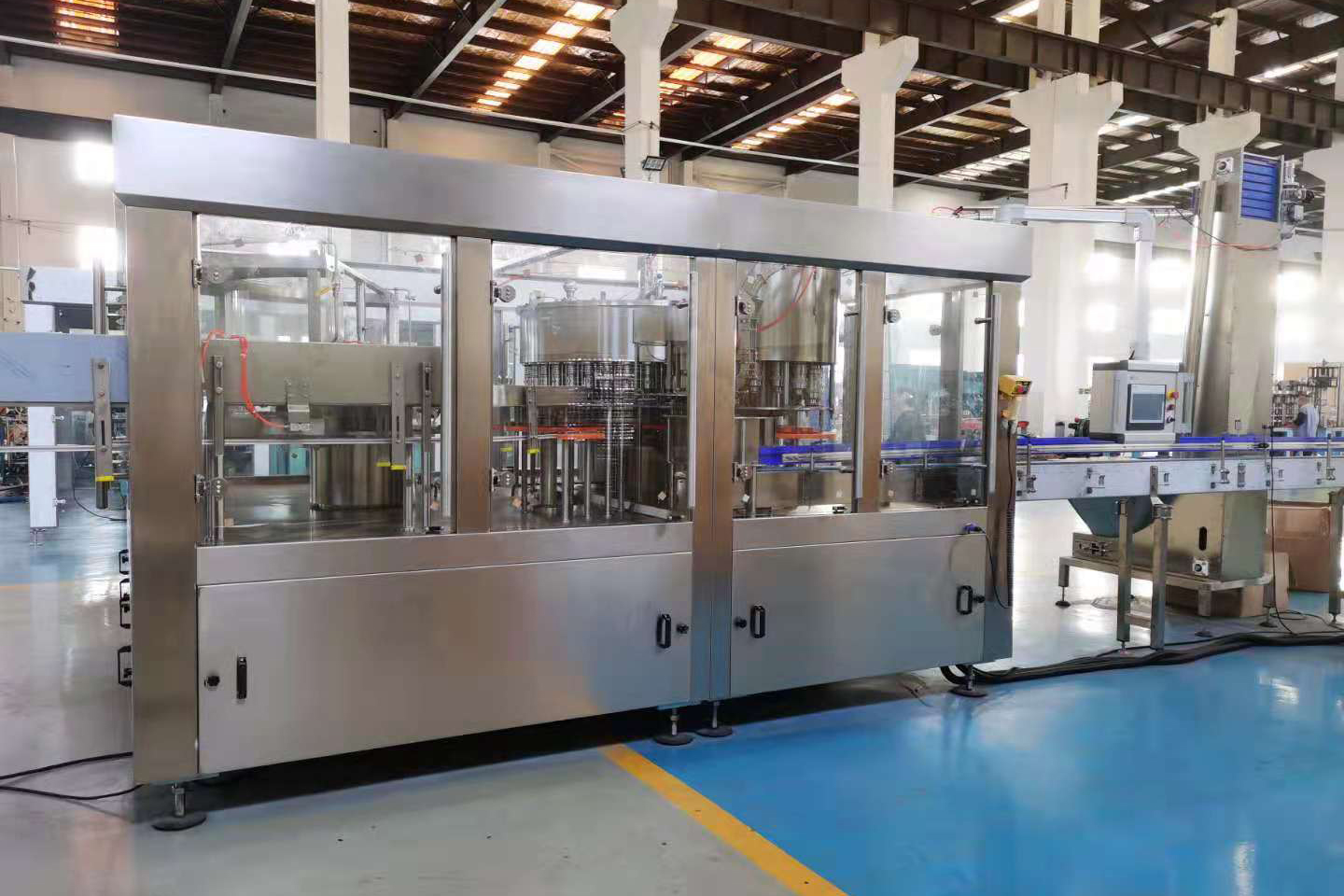

blowing-Filling-Capping 3-in-1 Monoblock
High-speed rotary filling PET bottles blow-filling-capping Combi-block is based on "high-speed blow molding machine unit high-speed filling machine unit “and " high speed capping machine unit " ,equipped with control system and on-line detection system. Through the optical, mechanical, electricity, gas, liquid and other disciplines comprehensive application with image recognition technology , the application of synchronous servo control system , allowing customers to achieve the integration of multiple unit control and production equipment , achieve the production line scientific layout , seamless and integrated control , improve the entire line of production efficiency, reduce investment costs, reduce energy consumption and maintenance costs of the integrated production capabilities.

Quantity:




Inquire Add to Basket

Model:
8-8-3,14-12-5,1818-6,24-24-8,32-32-10,40-40-15,50-50-20,60-60-20,72-72-22
Brand:
HY-FILLING

Product Description

Product Application

This series of mineral water filling machine are applied to the production of pure water, mineral water, with optional capacity from 3,000 to 40,000BPH. The washing, filling and capping will be finished just by this one machine.

It is very convenient to change bottle size by means of advanced bottle conveying technology-bottle neck clamping & bottle suspending technology.

Main Features:

1. Washing,filling,capping can be carried out on the same machine. The design of the machine is scientific and reasonable.

2. The water filling machine appearance is beautiful and the function is complete. The operation and maintenance is convenient.

3. The water filling machine adopts advanced technology and normal pressure filling valves, with high filling precision. The speed of filling is fast and the liquid amount is controlled accurately, with same filling level.

4. The water filling machine filling device can be stopped automatically when there is no bottle or bottles are damaged.

5. Pneumatic value and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.

6. The magnetic torque is used for screw capping.The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed. The caps can not be damaged, the capping is reliable.

Model	CGN 14-12-5	CGN 18-18-6	CGN 24-24-8	CGN 32-32-10	CGN 40-40-15	CGN 50-50-20	CGN 60-60-20	CGN 72-72-22
0.5L(Per Hour) Capacity	3000~ 4000BPH	5000~ 6000 BPH	12000 BPH	18000~ 20000 BPH	24000~26000 BPH	30000~ 33000 BPH	36000~ 38000 BPH	40000~ 42000 BPH
Bottle Suitable	PET round or square
Bottle diameter	50mm~97mm
Bottle height	150mm~320mm
Compressed air pressure	0.5~1Mpa
Washing Mdeium	Aseptic Water
Washing Water's Pressure	0.2~0.25Mpa
Total Power <kw>	4.5	4.5	5.3	7.2	10.5	13.7	14.5	16.3
Weight <kg>	3500	4000	5600	14000	16000	19000	23000	26000
